ΒΆ KCMSet Installation for Printers with SonicPad
This guide describes how to connect KCMSet to SonicPAd.
-
Open SonicPad.
-

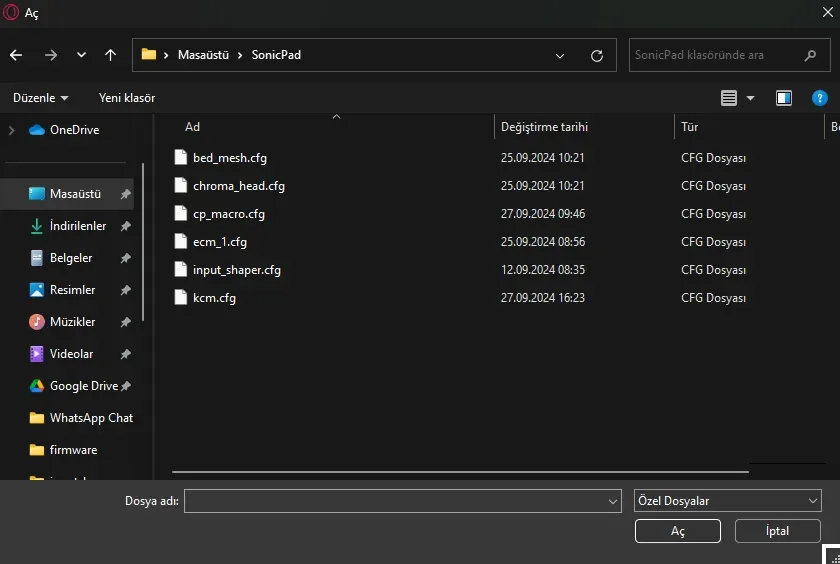

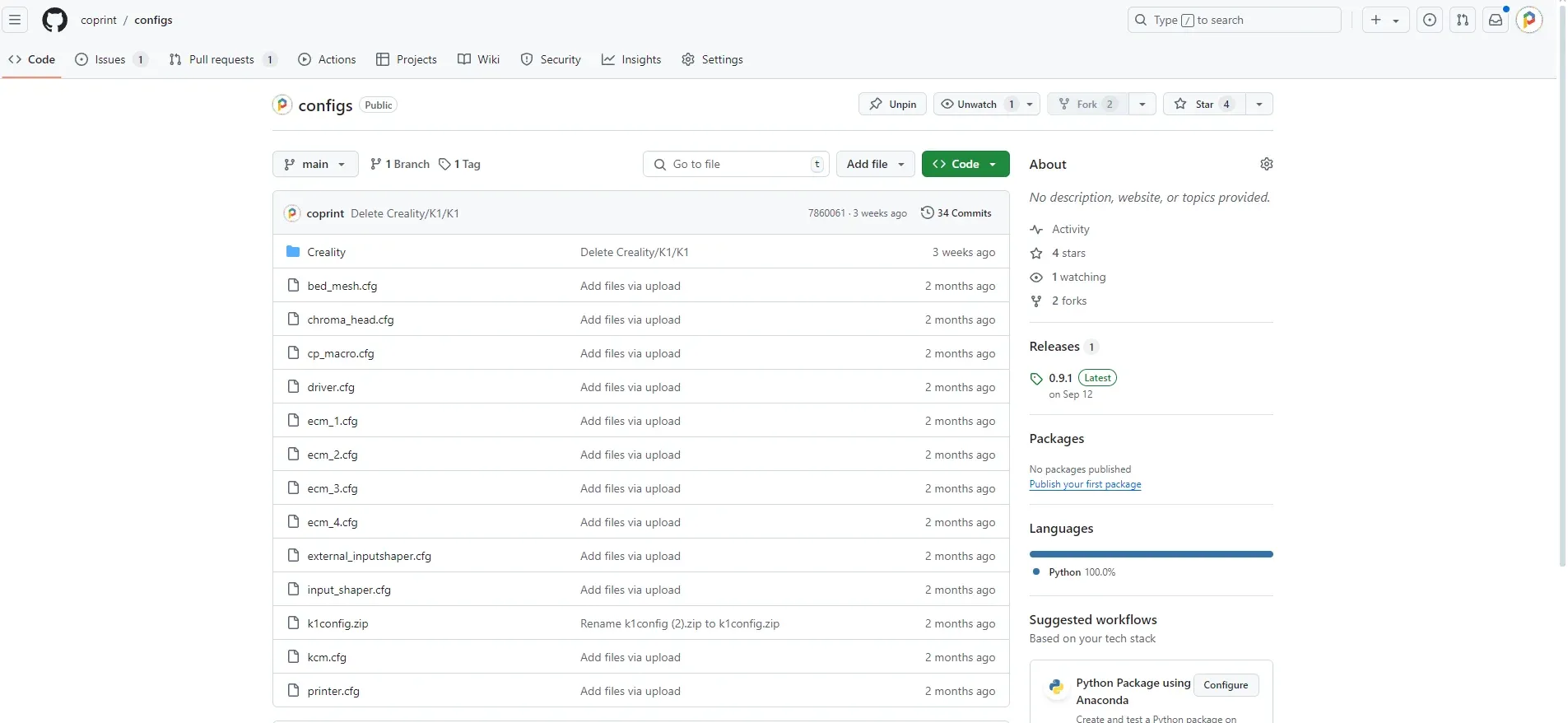

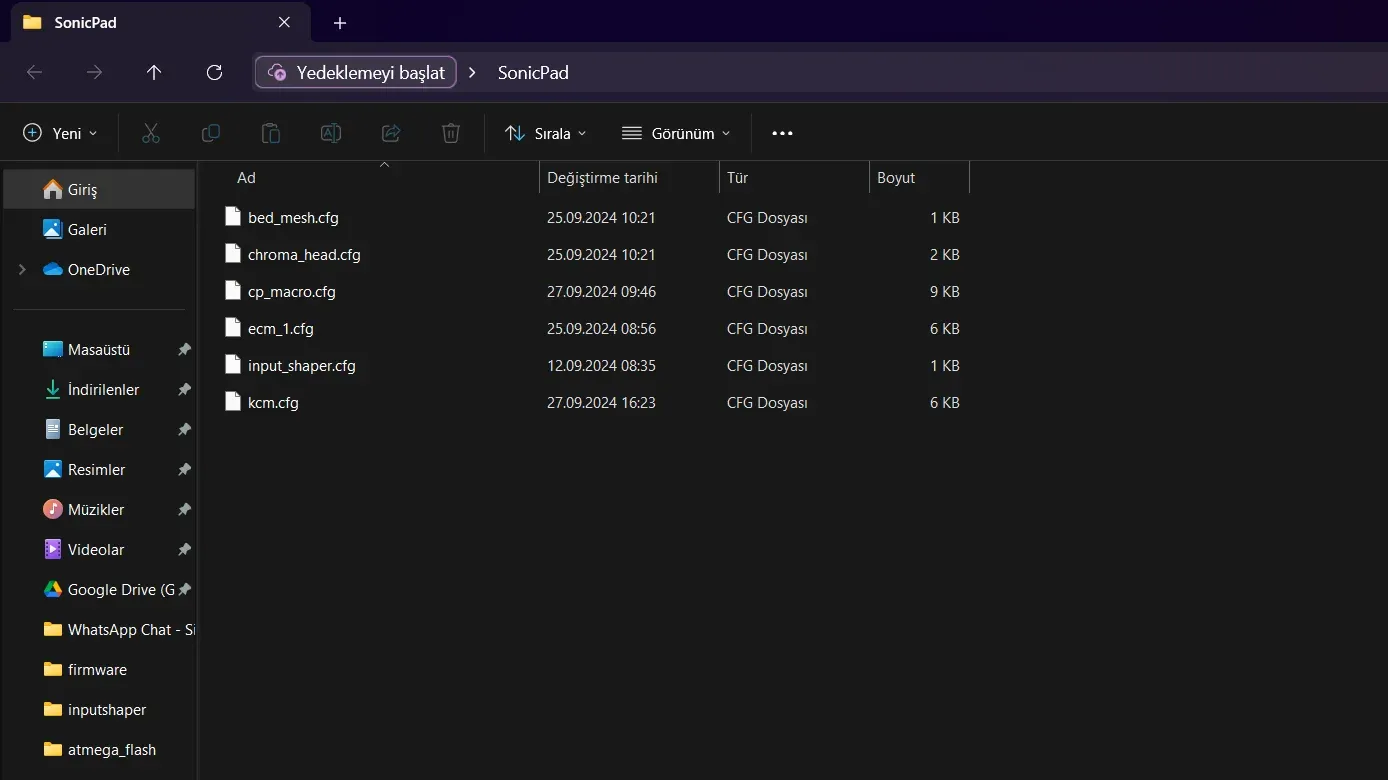

Download the required Config files from the CoPrint github page and put them in the folder.
-

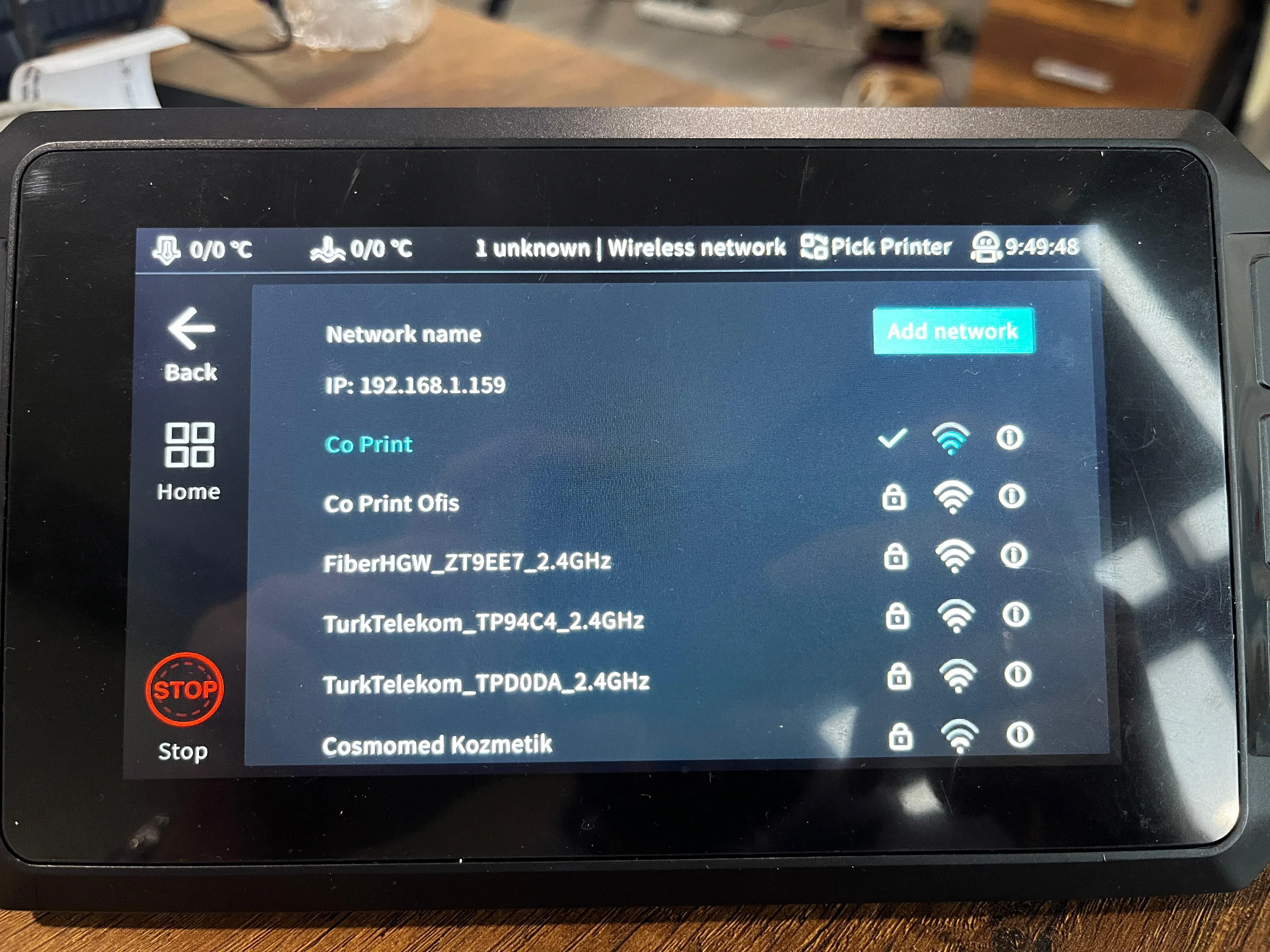

Find out the IP address from the SonicPad network section and enter it by typing it into your browser.
-

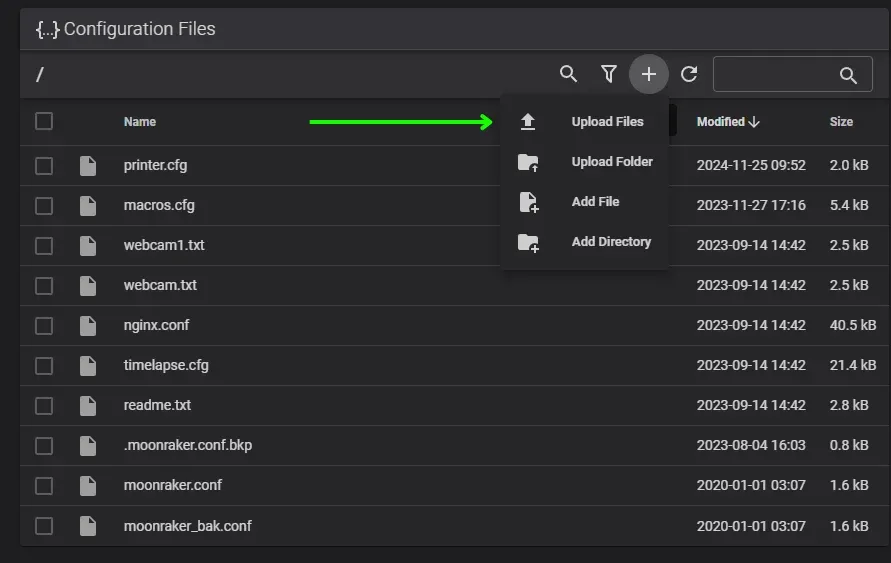

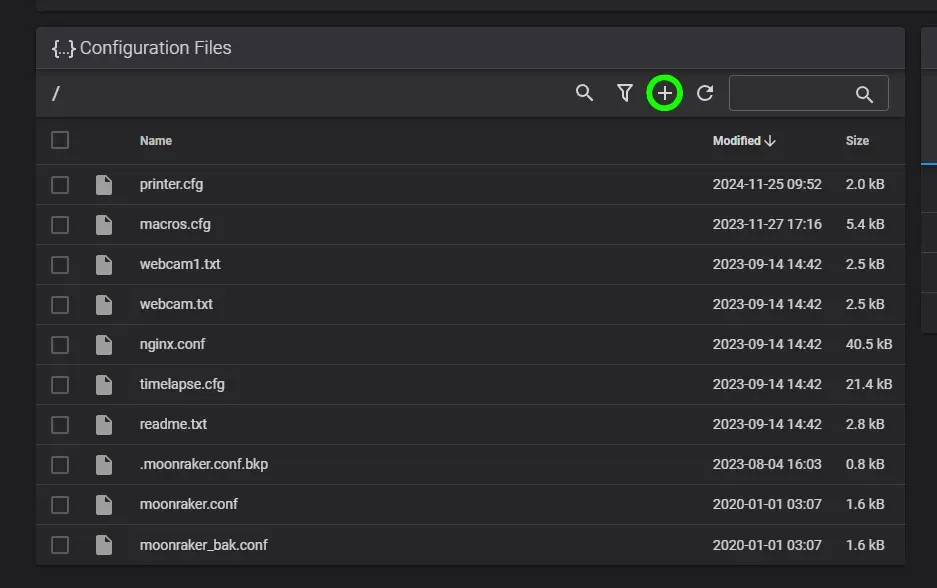

On the screen that opens, click on the Configuration section and upload the files you downloaded here.
-
On the Sonic Pad screen, enter settings.
-

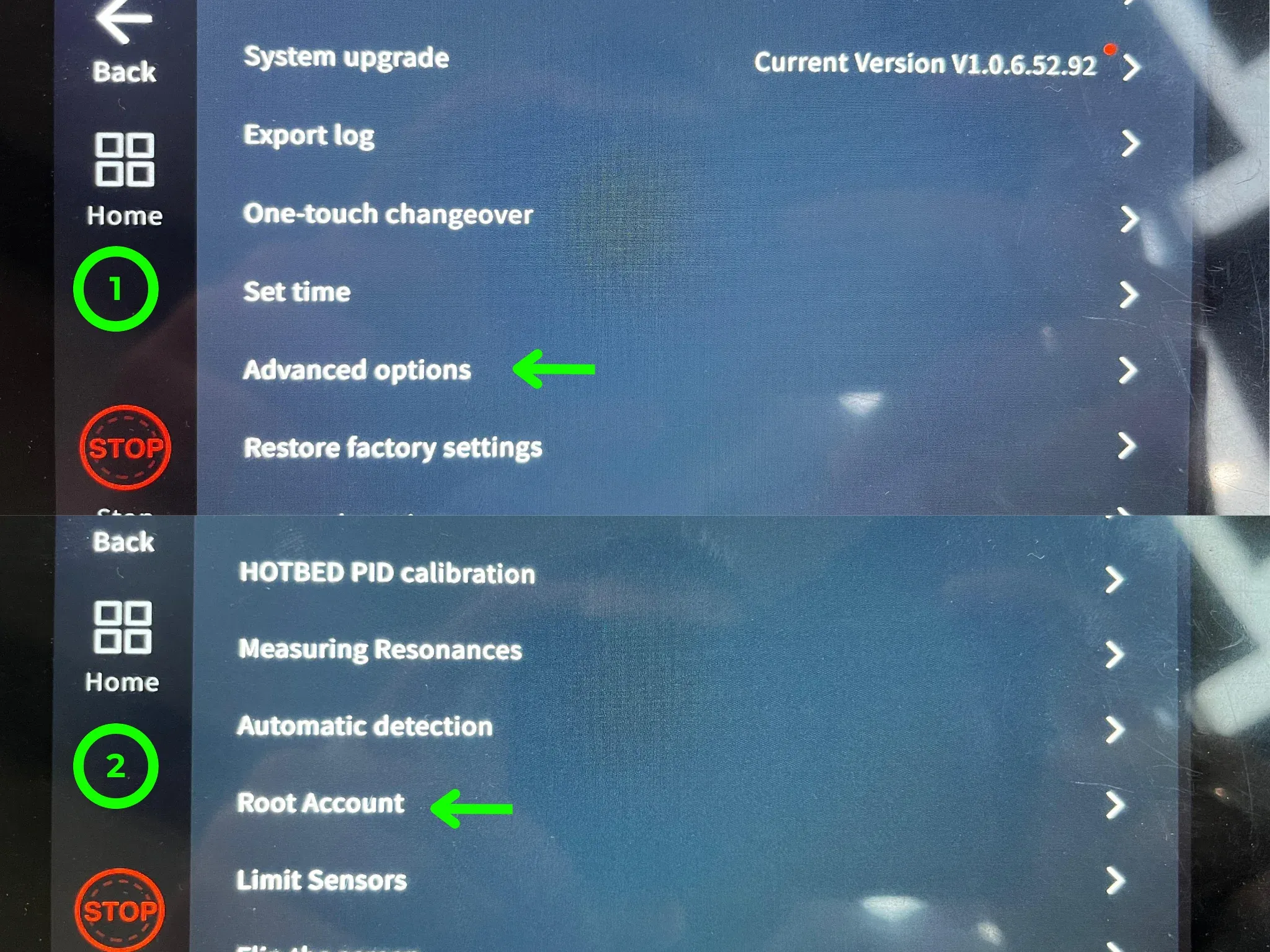

Click on Advanced Options.
-
Click on the Root Account option.
-

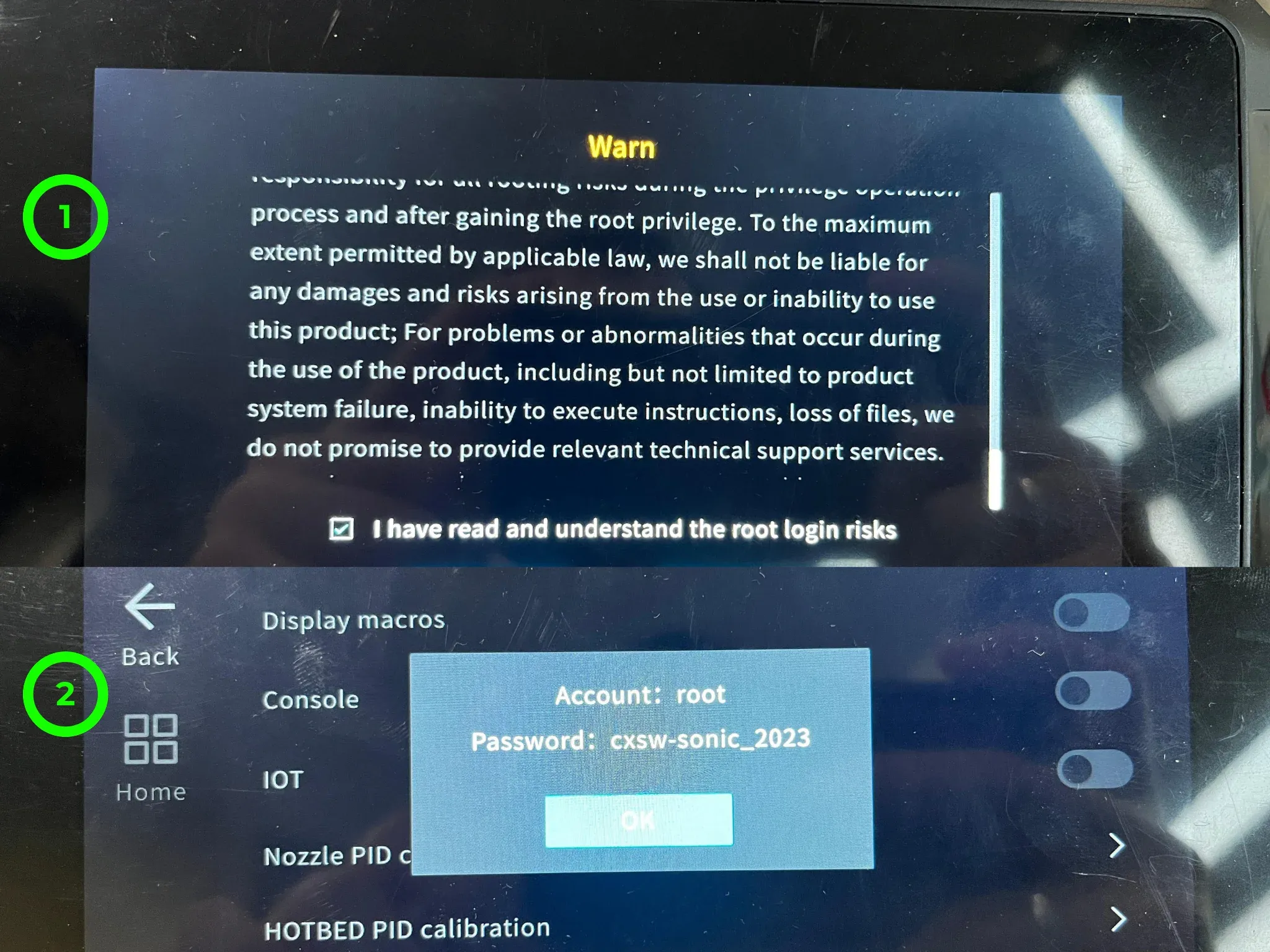

Read the warning section and confirm and continue.
-

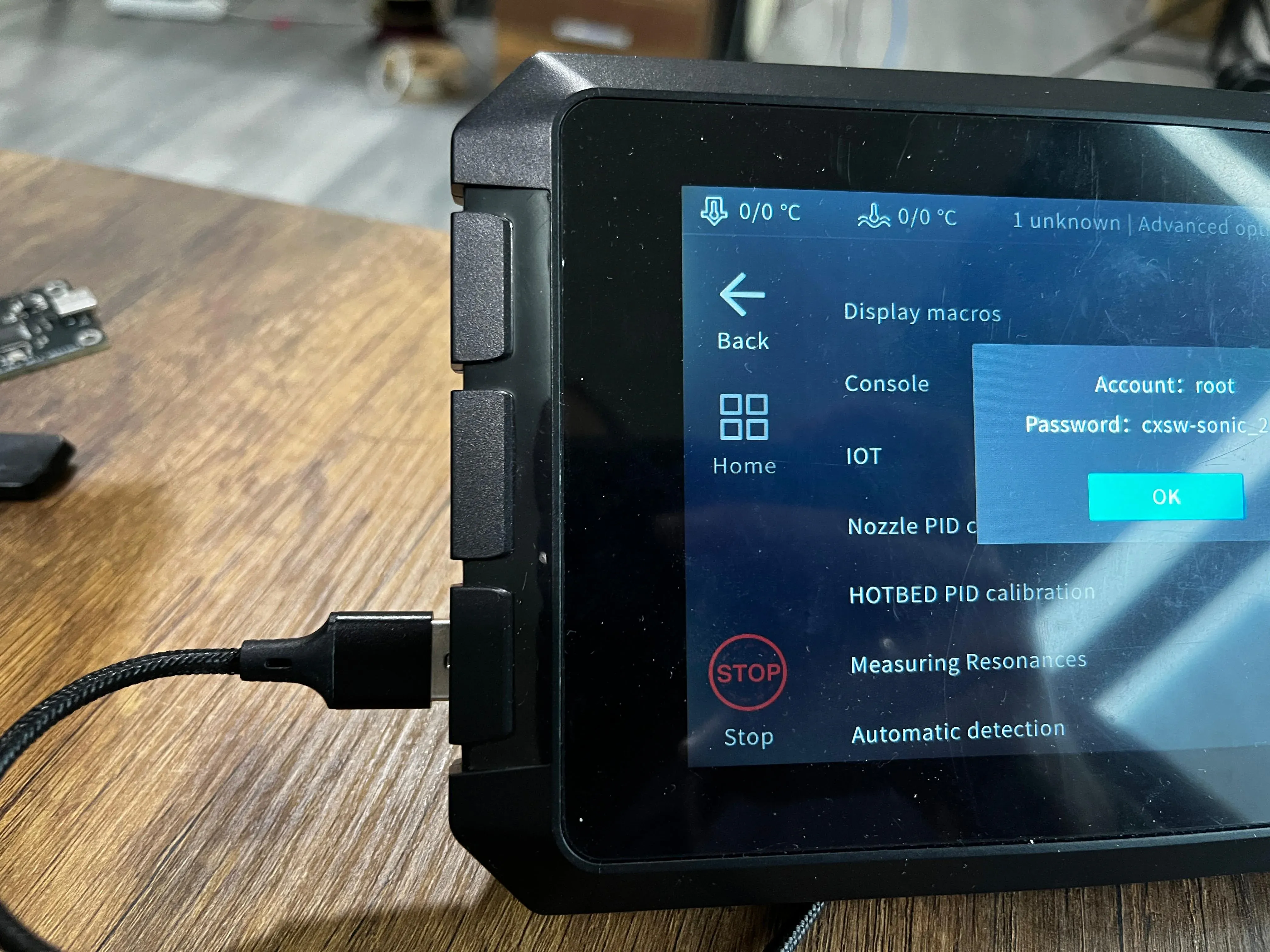

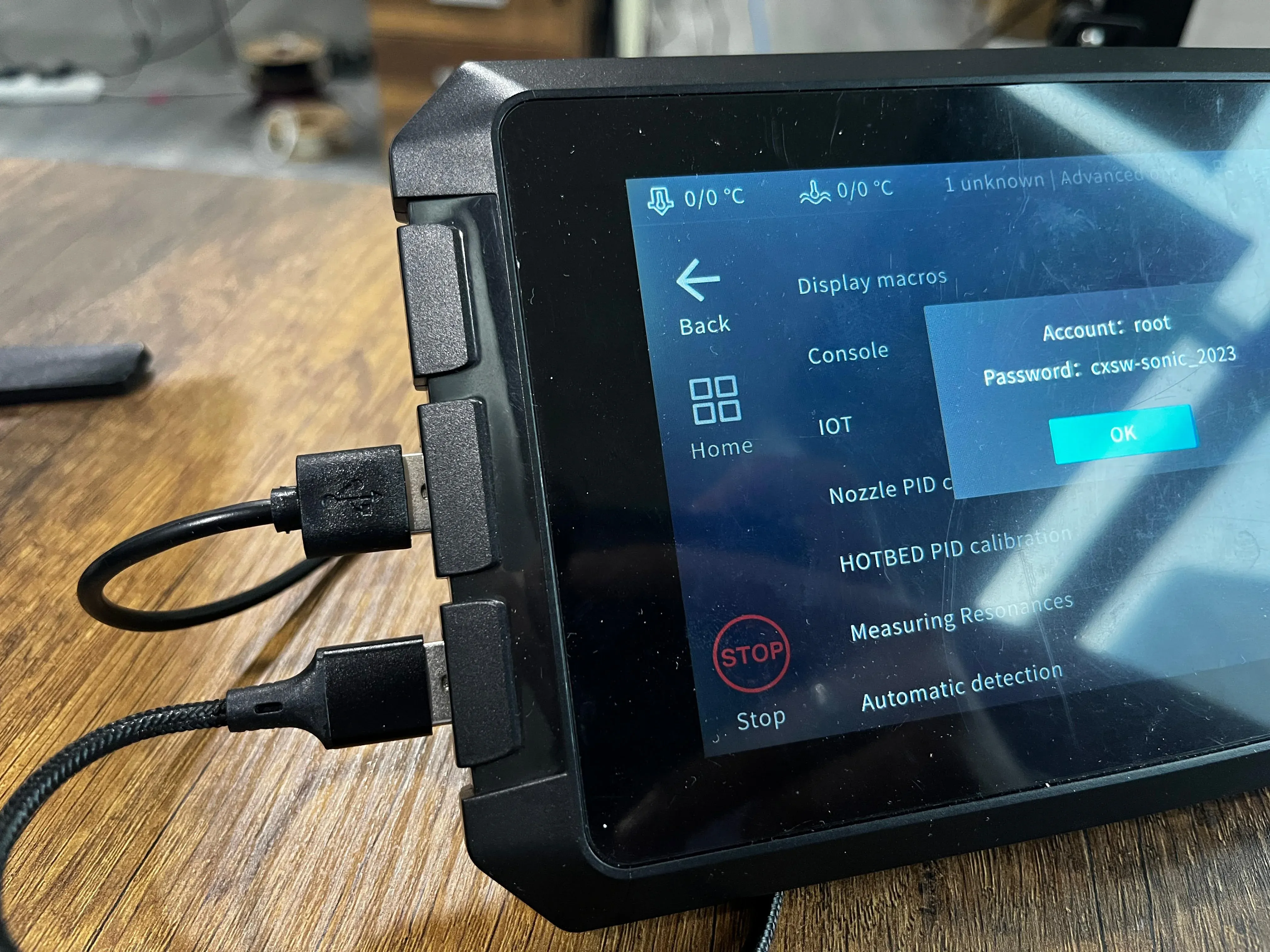

The username and password for ssh are written on the screen that appears. Do not close the screen.
-

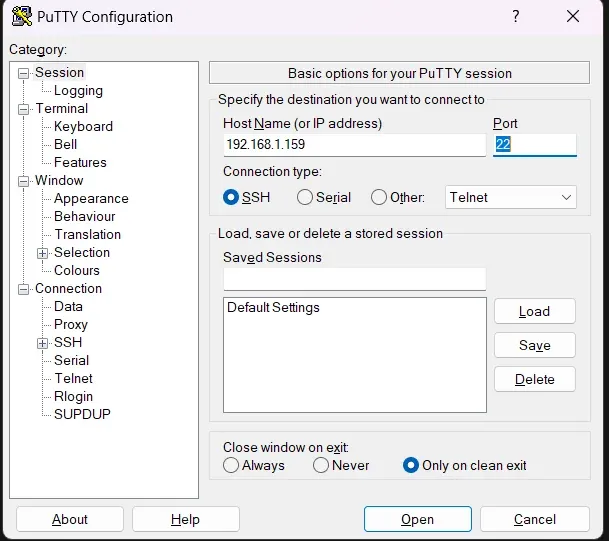

Open the Putty application.
-
Type the SonicPad IP address in the Hostname field.
-

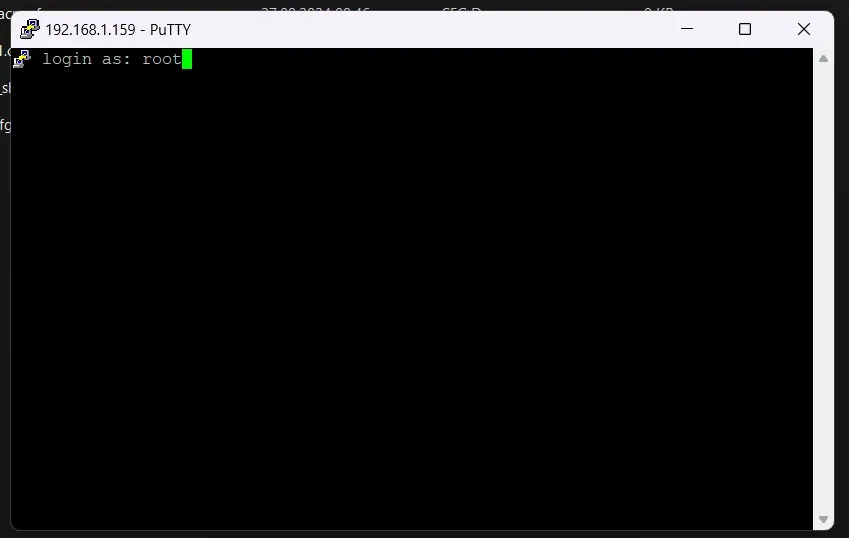

On the screen that opens, type the username that appears in the SonicPad root option and press enter.
-

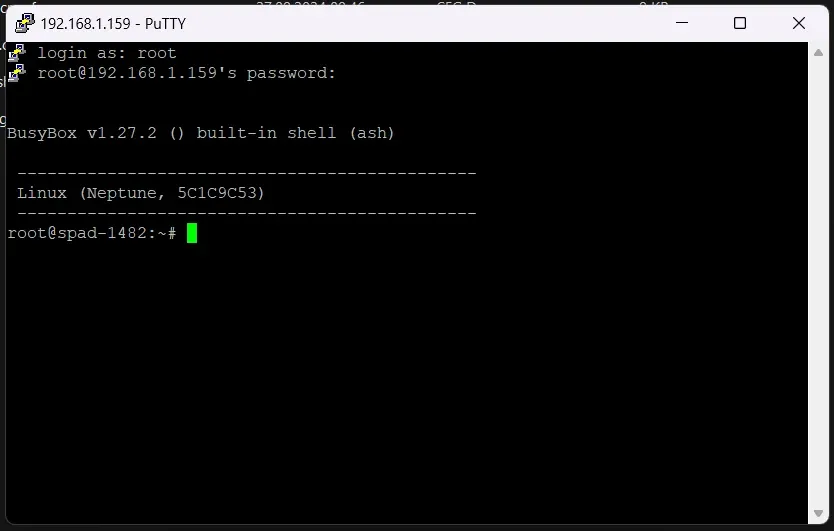

Type it in the Password section and press enter and now we are in SonicPad.
-
We connect our printer to the SonicPad.

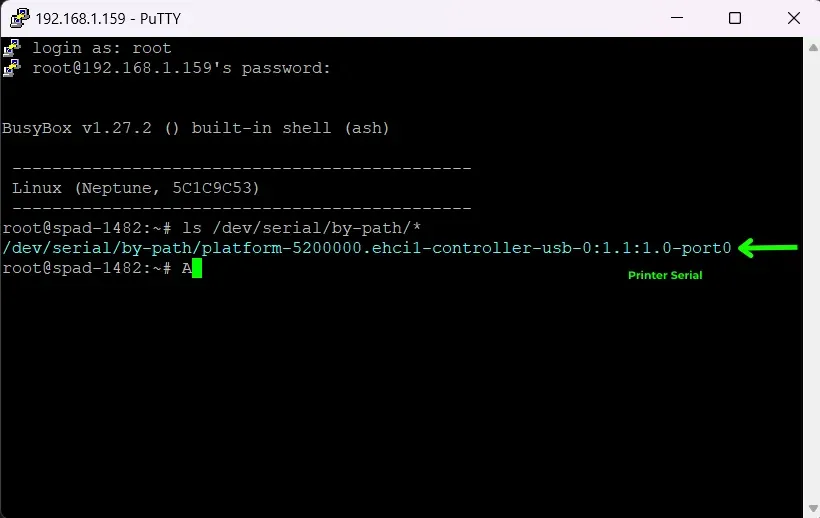

- ls /dev/serial/by-path/* We write the code and press enter. We find the serial path of our printer.
- We connect KCM to SonicPad via USB.

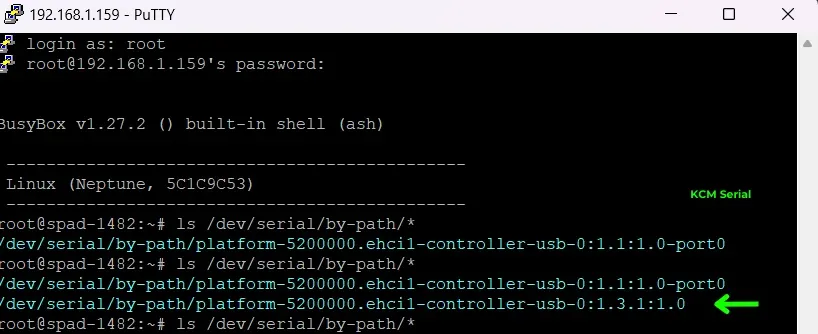

- ls /dev/serial/by-path/* We write the code and press enter. We find the serial path of KCM.
- We plug the ChromaHead into the KCM.

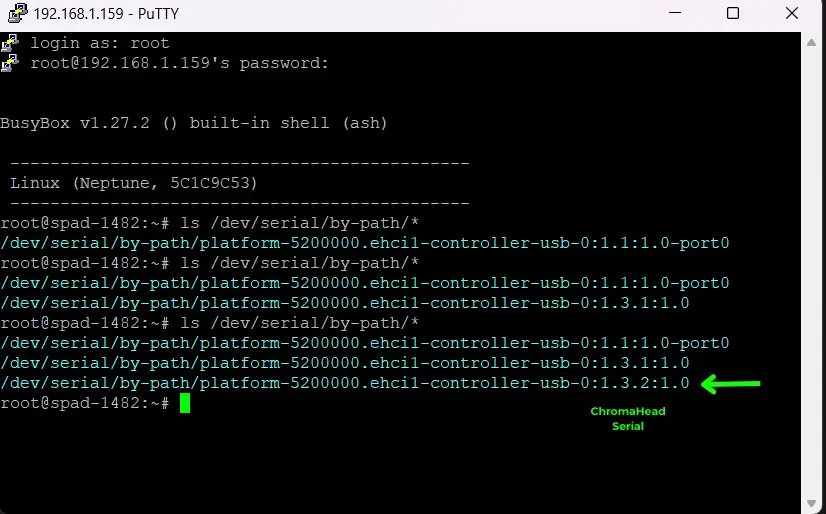

- ls /dev/serial/by-path/* We write the code and press enter. We find the serial path of ChromaHead.

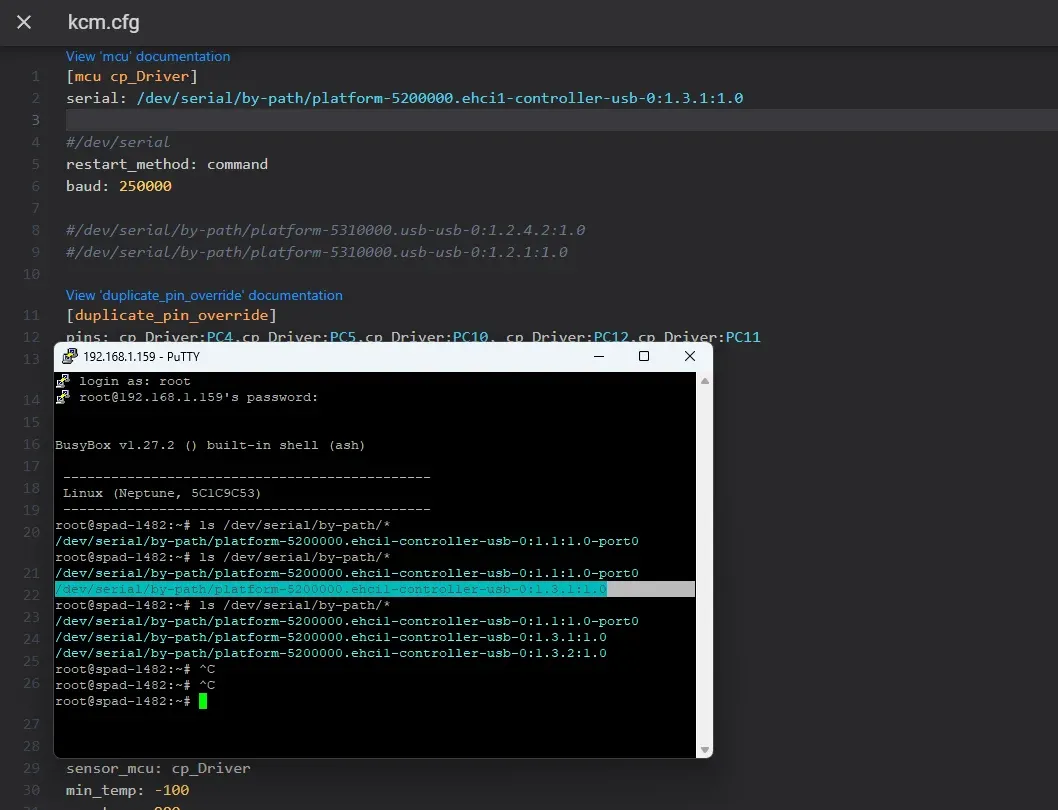

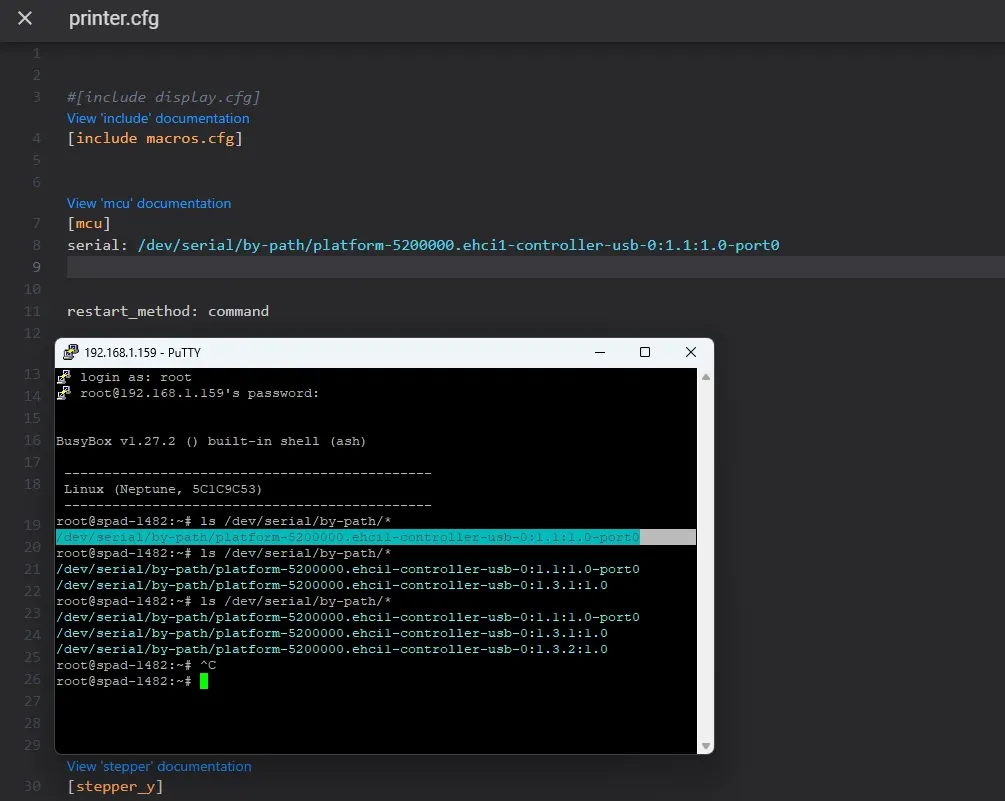

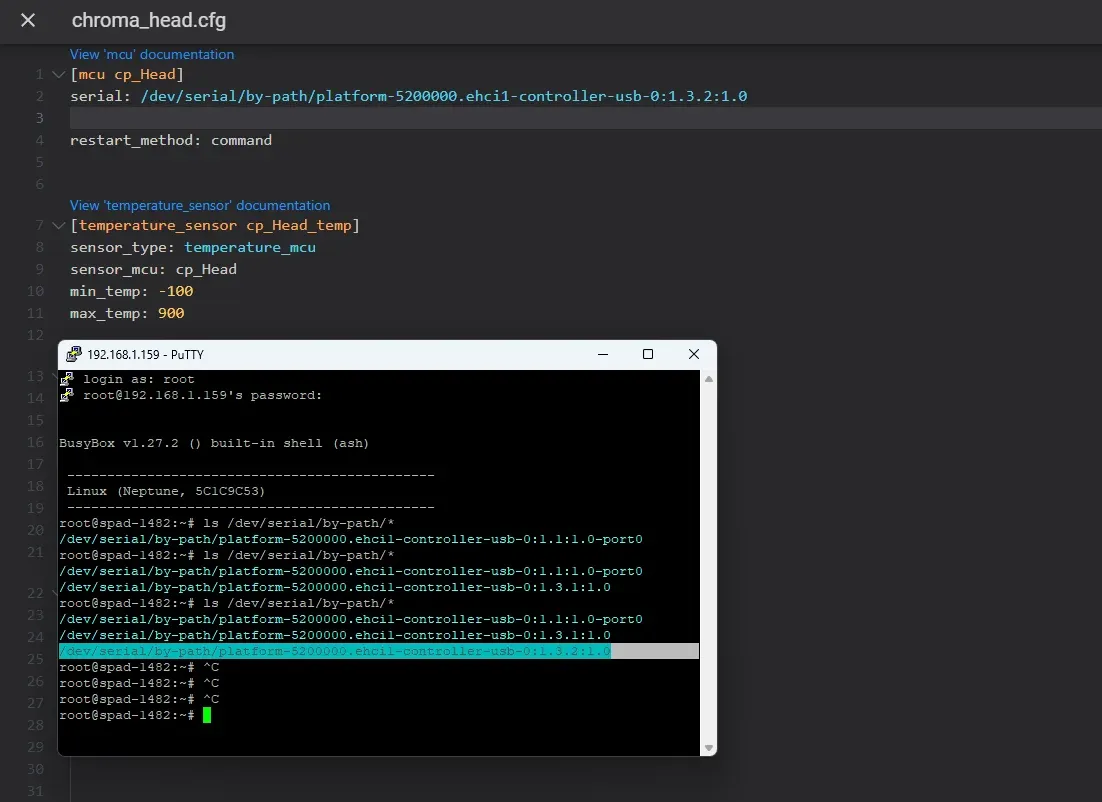

- After these operations, we go to paste the serial paths into the config files.

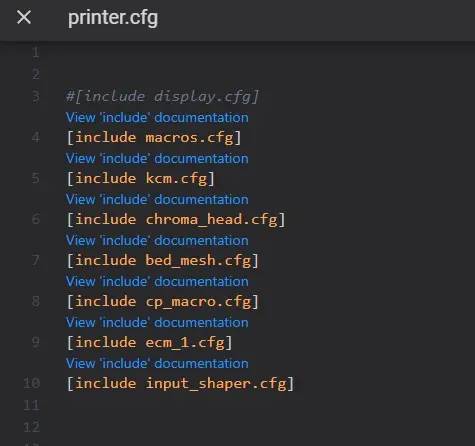

- We include the files we uploaded in printer.cfg and our process is complete.
