¶ Setup KCM Set Creality K1 and V3 Series
There are some incompatibilities in Klipper for Creality K1 and V3 series. You can solve this problem by following the steps below;
- Activate the root process on your printer.
- Open terminal on your computer.

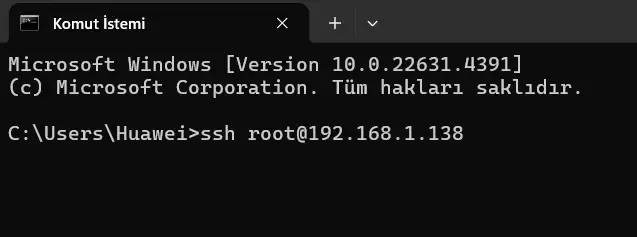

- On the screen that opens, type

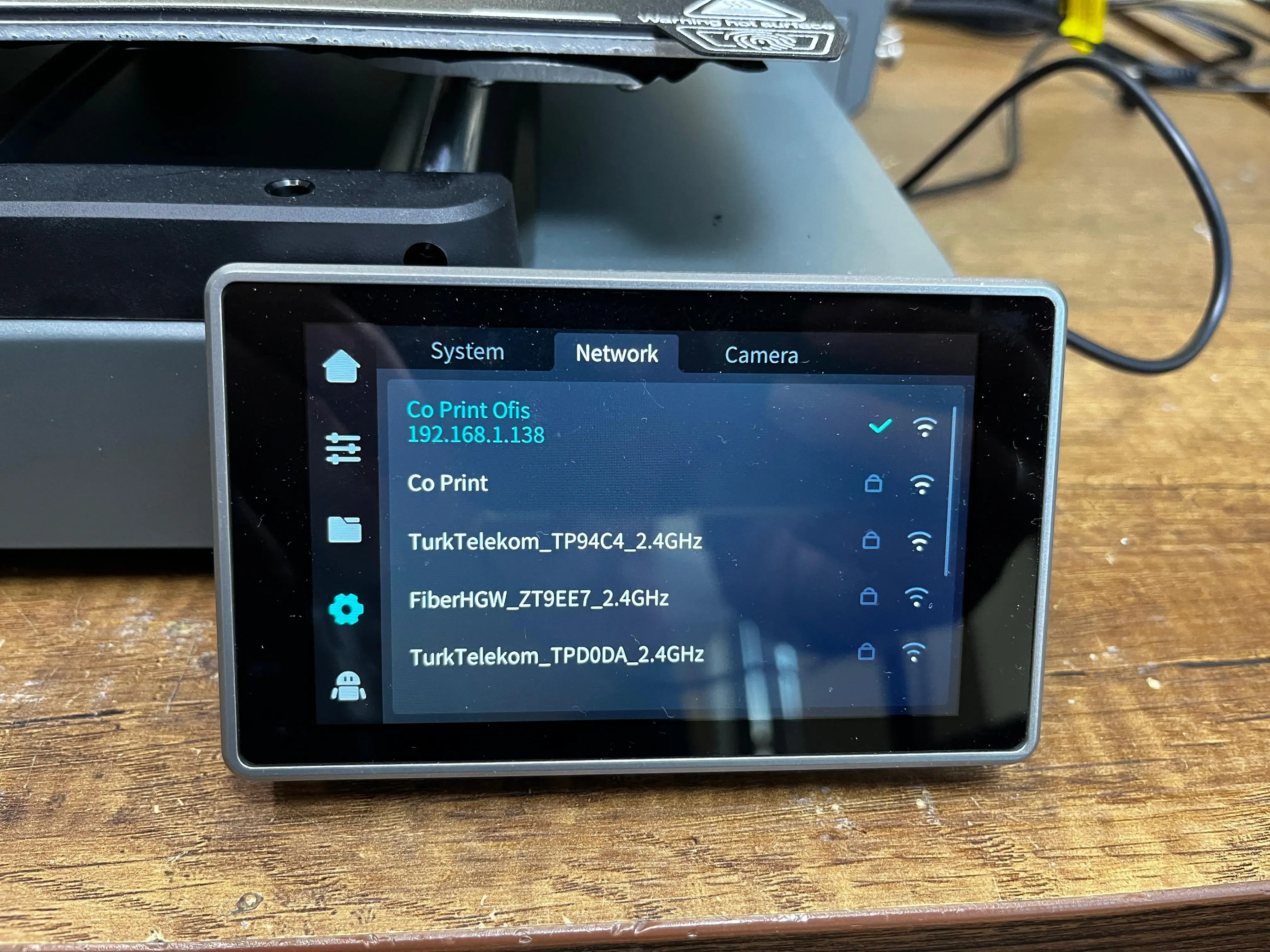

ssh root@192.168.1.138(your printer's IP address) and press enter.

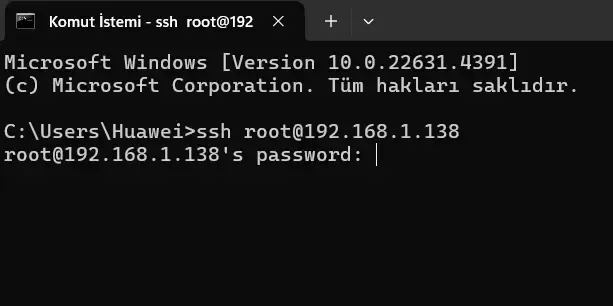

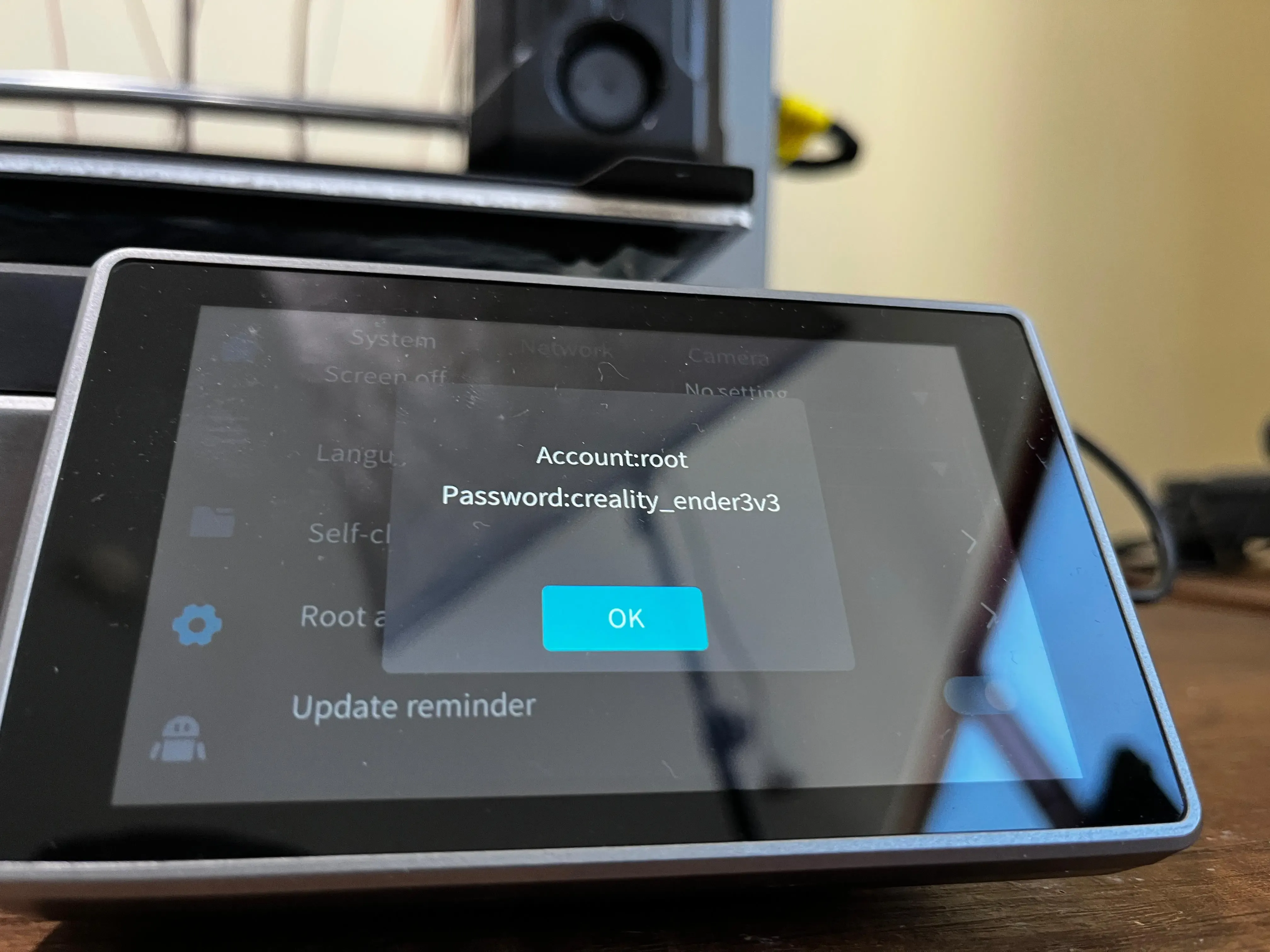

- After activating the root feature of your printer, type the password that appears on the screen where it says Password and press enter.
¶ Copy and paste the following operations in order:
cd /usr/data
sh /usr/data/helper-script/helper.sh(install moonraker and mainsail)
(If you have not installed helper-script before, you should install it from this link.
git clone https://github.com/Klipper3d/klipper
cd /usr/data/klipper
git reset --hard 08a1c9f12760ee6d89db2b82e76c7d93453212db
- (# upload this klippy.tar.gz to config section on mainsail.)
mv /usr/data/printer_data/config/klippy.tar.gz /usr/data/klipper
tar -zxvf klippy.tar.gz
vi /etc/init.d/S55klipper_service
-
- Press i to edit.

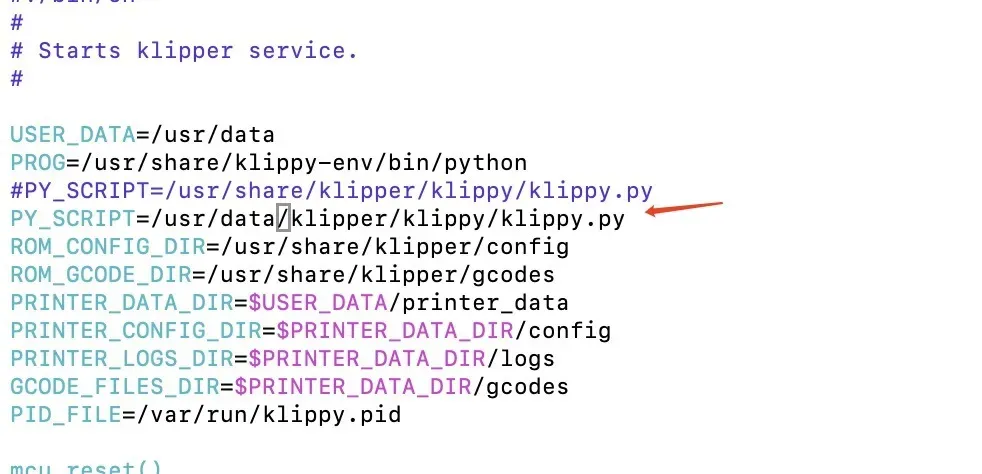

modify /usr/share/klipper to /usr/data/klipper
¶

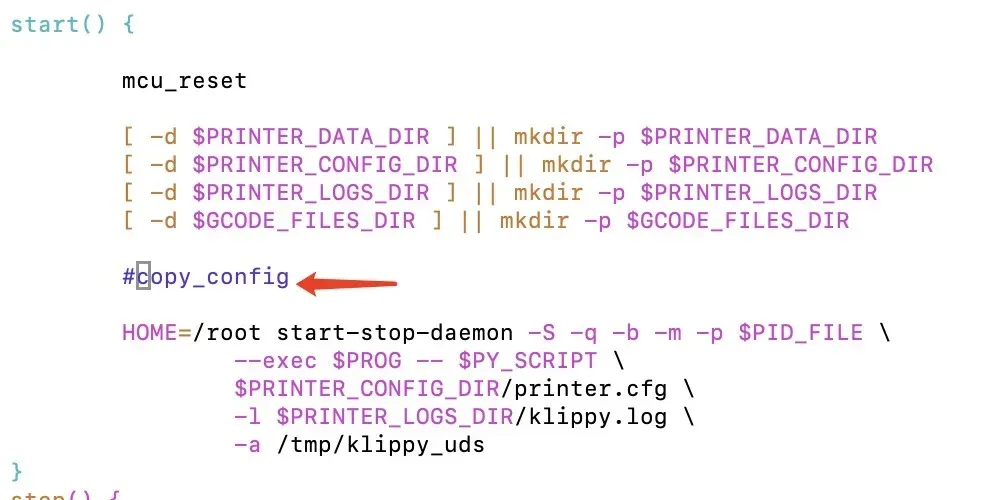

modify copy_config to #copy_config
- After editing is finished, press esc. then type ":wq" and enter.
/etc/init.d/S55klipper_service restart
